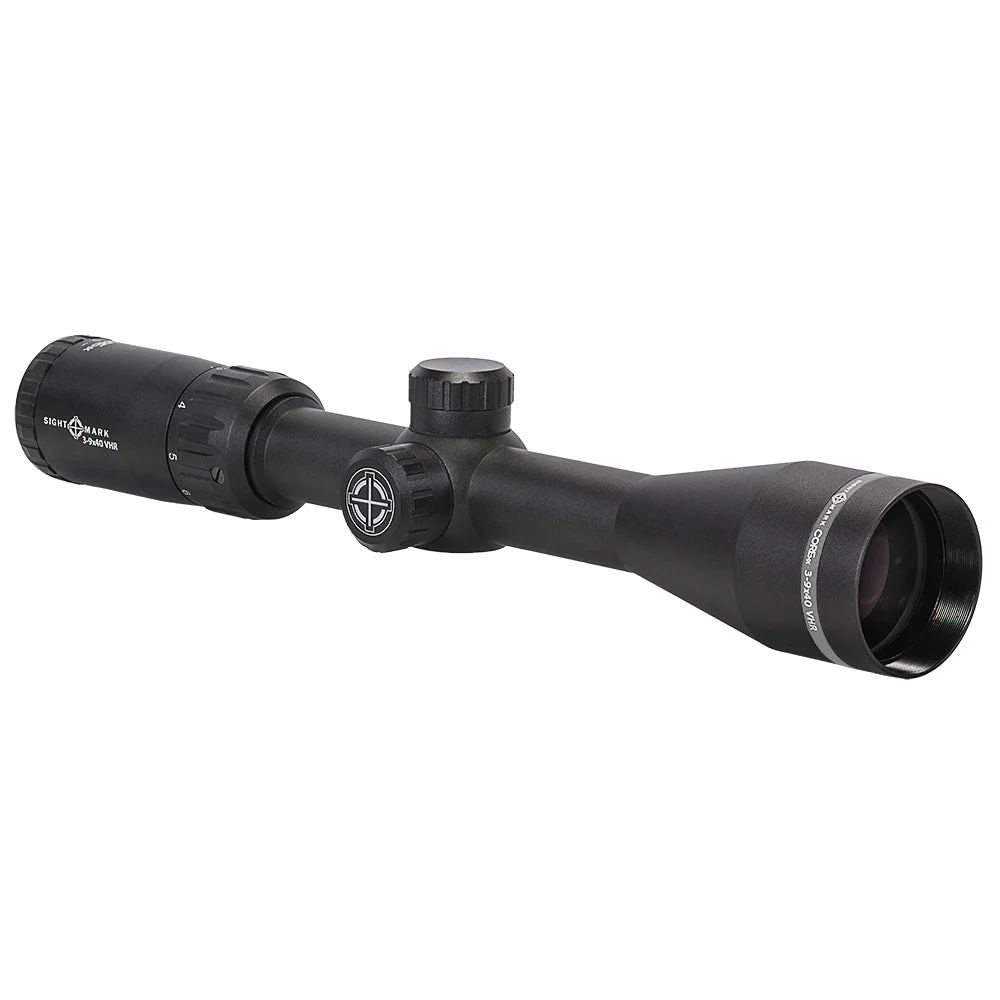

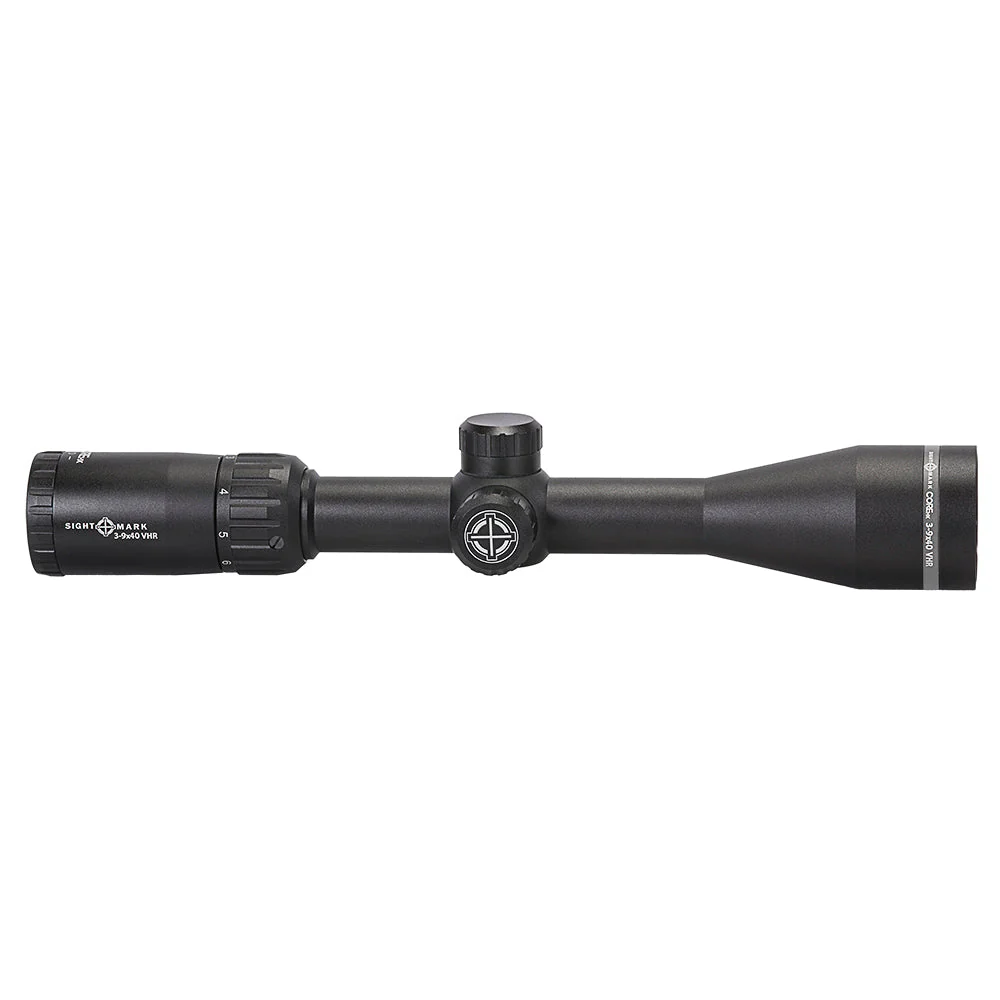

With advanced, multi-coated premium glass and a rangefinding reticle specifically designed for predators, deer and other mid-size game species, the Core HX 3-9x40 HBR Hunter’s Ballistic Riflescope gets your prey in focus. From up-close-and-personal to 400 yards out, this feature-packed hunting riflescope gets you on target faster, even in low-light conditions. The IP67 waterproof, fogproof and shockproof Sightmark Core HX 3-9x40 HBR Riflescope features capped, resettable turrets, BDC reticle with integrated windage holdovers and a 1” 6061-T6 aircraft-grade aluminum tube to help you make every shot count, even when the weather gets rough.

Features

• Rangefiding reticle designed for whitetail deer
• BDC reticle works with various hunting calibers
• Single-piece, 1" tube
• Aircraft grade aluminum
• Hard anodized finish
• Resettable, Capped turrets
• Shockproof, fogproof, waterproof
• Multi-coated optics

Specifcations

Reticle, Type	HBR- Hunter
Maximum Recoil	.416 Rem
Sunshade	No
Nitrogen Filled	Yes
Fog Proof	Yes
Shockproof	Yes
Focal Plane	2nd
IP Rating (waterproof)	IP67- waterproof and dustproof
Body Material	Aluminum
Material, Lens	Glass
Lens Coating	Multi-coated
Operating Temp,?F/?C	0 to 120 / -17 to 49
Operating Temp,?F/?C	0 to 120 / -17 to 49
Length (in/mm)	12.26/311.4
Width (in/mm)	1.87/47.5
Height (in/mm)	1.87/47.5
Adjustment Value	1/4 MOA
Windage & Elevation, Lock	No
Reticle	Metal
Illuminated (yes/no)	No
Finish/Color	Matte black
Magnification	3-9
Diameter, Objective Lens	40
Diameter, Eyepiece	1.65/42
Diameter, Exit Pupil	13.3-4.4
Eye relief (in/mm)	4-3.7/101.6-94
Field of view, m@100m	11.8-4.07
Field of view, ft@100yd	35.4-12.2
Diopter Adjustment	+2 to -2
Diameter, Tube	1/25.4
Parallax Setting	100yds
Windage Range of Adjustment	100
Elevation Range of Adjustment	100
Weight, oz	14.2

Included in Package

• Neoprene scope cover
• 1" scope rings
