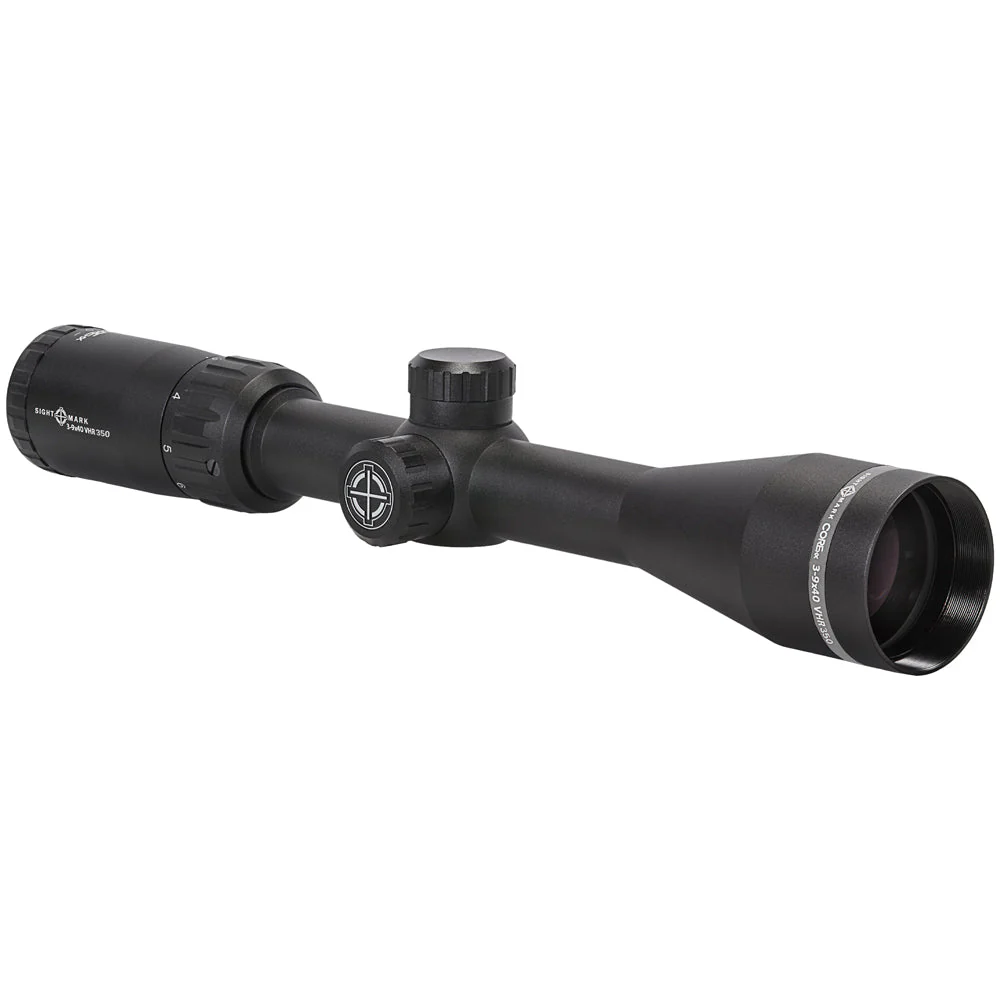

The Core HX 3-9x40VHR is a sleek riflescope designed for deer hunting, but also excellent for predator and varmint hunting. Constructed of aircraft-grade aluminum, the Core HX 3-9x40 is rugged and features a single-piece 1’’ tube, rangefinding reticle designed specifically for 350 Legend caliber, hard-anodized matte black finish, fully multi-coated glass and IP67 waterproof, dustproof, shockproof and fog-proof protection. Additional features include resettable, capped turrets with ¼ MOA windage and elevation adjustments and a Limited Lifetime Warranty. For a reliable riflescope designed to fill your freezer with venison, the Core HX 3-9x40 VHR can’t be beat!

Features

• Rangefinding reticle designed for whitetail deer
• 150 grain 350 Legend BDC reticle
• Single-piece 1’’ tube
• Aircraft grade aluminum
• Hard anodized finish

Specifcations

Reticle, Type	350 Legend VHR - Venison Hunter Reticle
Reticle	metal
Reticle, Color	NA
Illuminated (yes/no)	No
Reticle Brightness Setting	NA
Finish/Color	Matte Black
Magnification (x)	3-9
Objective lens dimensions (mm)	40
Diameter, Eyepiece	1.65 / 42 mm
Diameter, Exit Pupil	13.3 - 4.4 mm
Eye relief (in/mm)	4 - 3.7 / 101.6 - 94
Field of view, m@100m	11.8 - 4.07
Field of view, ft@100yd	35.4 - 12.2
Diopter Adjustment	+2 to -2
Diameter, Tube	1 / 25.4
Parallax Setting	100 yds
Windage adjustment range (MOA)	100
Elevation adjustment range (MOA)	100
Windage & Elevation, Lock	No
Adjustment Value	1/4 MOA one click =
Maximum Recoil	1,200 Gs
Sunshade	No
Nitrogen Filled	Yes
Shockproof (yes/no)	Yes
Fog Proof	Yes
Focal Plane	2nd
IP Standard	IP67 - waterproof and dustproof
Body Material	Aluminum
Lens Material	Glass
Lens Coating	Multi-coated
Operating Temperature	0 to 120 / -17 to 49 °F/°C
Length (in/mm)	12.26 / 311.4
Width (in/mm)	1.87 / 47.5
Height (in/mm)	1.87 / 47.5
Weight, oz	14.2

Included in Package

• Neoprene scope cover
• 1" scope rings


Download Product Manual
